FAST TARGET ACQUISITION WITH 4 X MAGNIFICATION

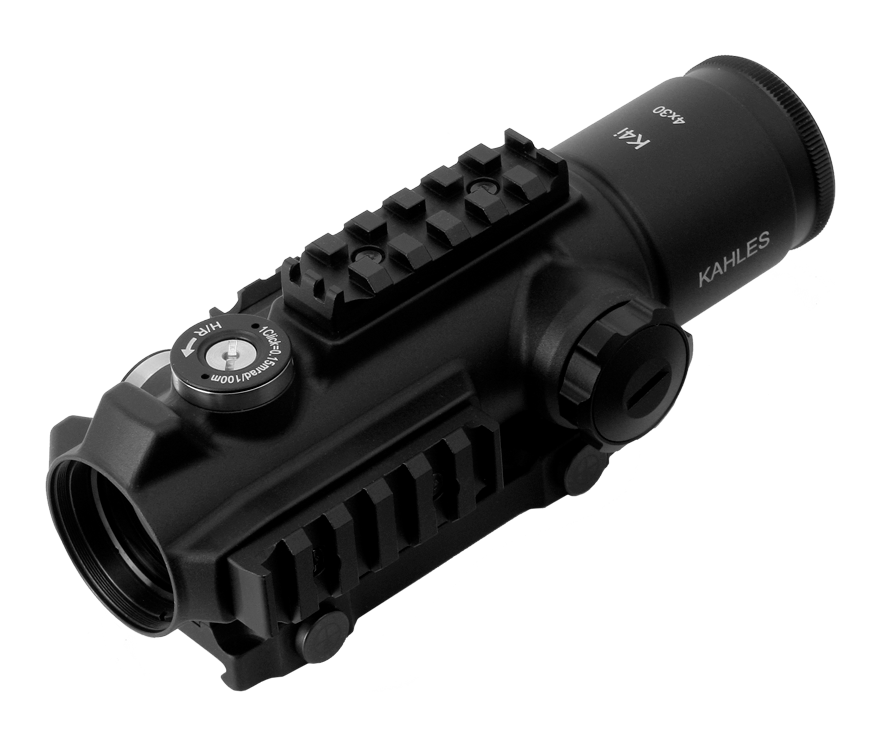

The K4i has been designed for the toughest demands and is optimised for fast target acquisition and a maximum overview at short to medium distances.
- 4 x optics with extra large exit pupil, 91 % light transmission and diopter compensation

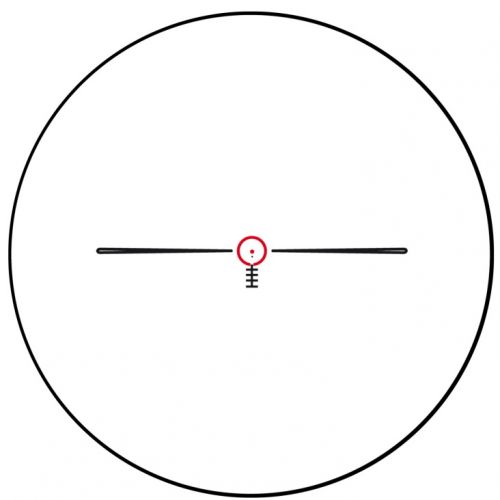

- Durable prism design with illuminated reticle, continuously adjustable
- Precise click adjustment 1.5 cm/100 m
- Ergonomic design and rugged construction
- Three integrated Picatinny (MIL STD 1913) rails for attaching accessories
- Includes integrated Picatinny mounting
| Magnification: |
4 |
| Objective lens diameter: |
30 mm |
| Exit pupil: |
7.5 mm |
| Eye relief: |
95 mm |
| Field of view: |
9.1 m/100 m |
| Diopter compensation: |
+2 / -3.5 dpt |
| Twilight factor (DIN 58388): |
11.0 |
| Impact correction per click: |
.15 MRAD |
| Adjustment range (E/W): |
2.0 / 2.0 m/100 m |
| Parallax adjustment: |
100 m |
| Length: |
177 mm |
| Weight: |
680 g |
| Illuminated: |
Yes |
| Warranty: |
10 years |
