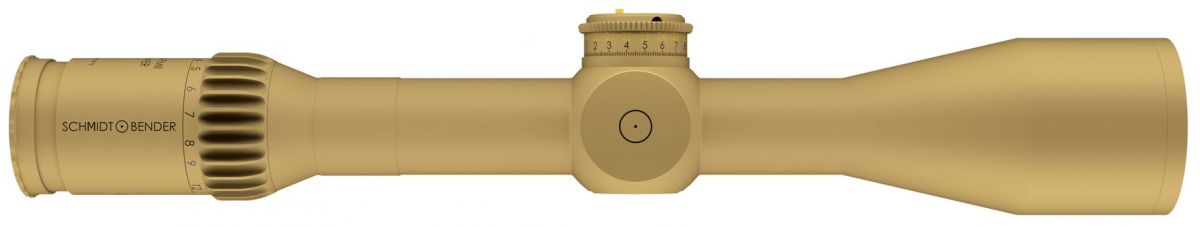

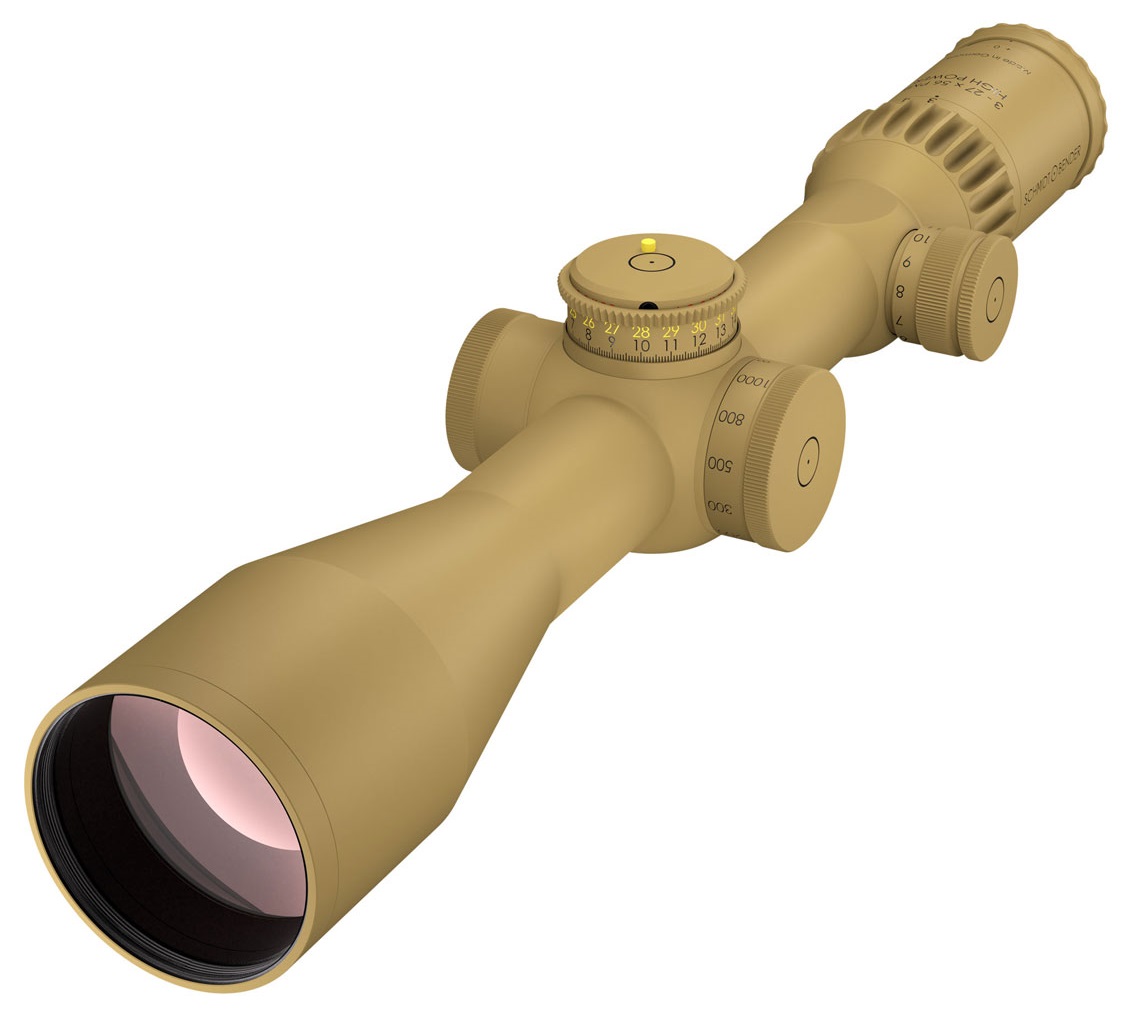

The 3-27x56 PMII High Power can be used from close to extreme distances due to its 9x zoom.
The riflescope was originally developed for the USSOCOM ‘Extreme Long Range Program’, in which it emerged as the winner in 2012. Since then, it has been a popular sniper optic for various NATO partners, police and counter-terrorism units. Its variability makes it ideal for multi-caliber platforms.
It has an extremely large field of view and a generous exit pupil. It has a high transmission and the resolution allows the identification of very distant man-sized targets. The internal travel of more than 40 mrad allows the shooter to shoot at very long distances.
Its variability makes it ideal for multi-caliber platforms.
Ultra flat Double Turn (DT27/DT35)
The 3-27x56 PM II High Power is being enhanced with a new turret option: the well-proven low-profile double turn elevation turret from our PM II Ultra Short series which is currently in use by military and police. The low-profile turret design perfectly supports the use of an additional red dot sight for close distance. Although being very compact it maintains all essential features of a Double Turn turret such as a visual and tactile yellow-colored revolution indicator, locking function, MTC clicks and easy to read digits. It is available as a 27 MRAD (DT27) version or with a larger adjustment range of 35 MRAD (DT35).
| Weight (g) |
1100 |
| Length (mm) |
398 |
| Tube diameter (mm) |
34 |
| |
| Magnification |
3-27 |
| Objective lens diameter (mm) |
56 |
| Field of view (m) |
13.0-1.4 |
| Exit pupil (mm) |
8,7-2,1 |
| Eye relief distance (mm) |
90 |
| Twilight factor |
9,0-38,9 |
| Diopter |
–3 to +2 |
| |
| Adjustment |
DT27 MTC LT / ST ZC CT |
| Adjustment value/Click |
0.1 MRAD |
| Elevation (Turret) |
27 MRAD |
| Windage (Turret) |
±6 MRAD |
| |
| Adjustment |
DT35 MTC LT / ST ZC CT |
| Adjustment value/Click |
0.1 MRAD |
| Elevation (Turret) |
35 MRAD |
| Windage (Turret) |
±6 MRAD |
| |
| Parallax adjustmen |
yes |
| Illumination |
yes |
| |
| Turret Types |
cw/ccw |
