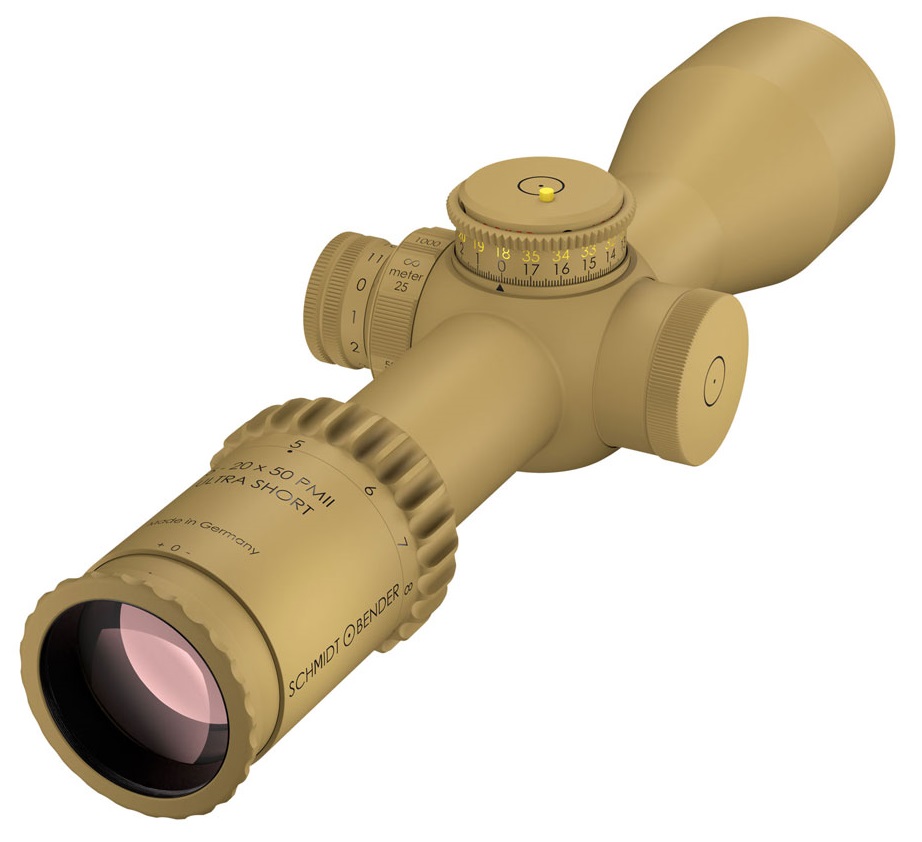

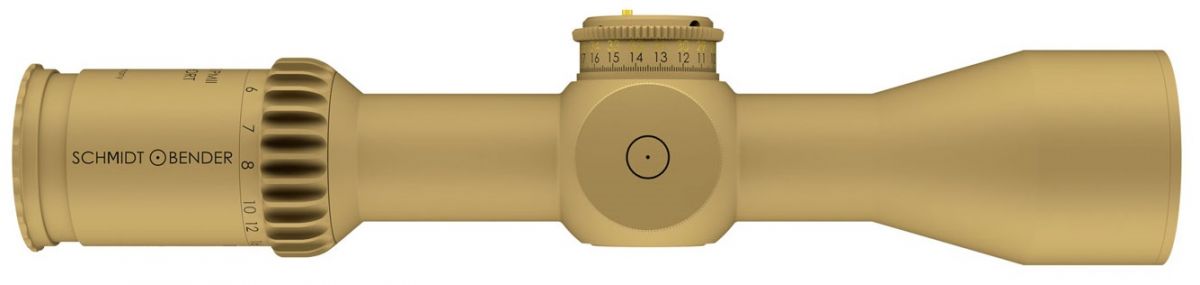

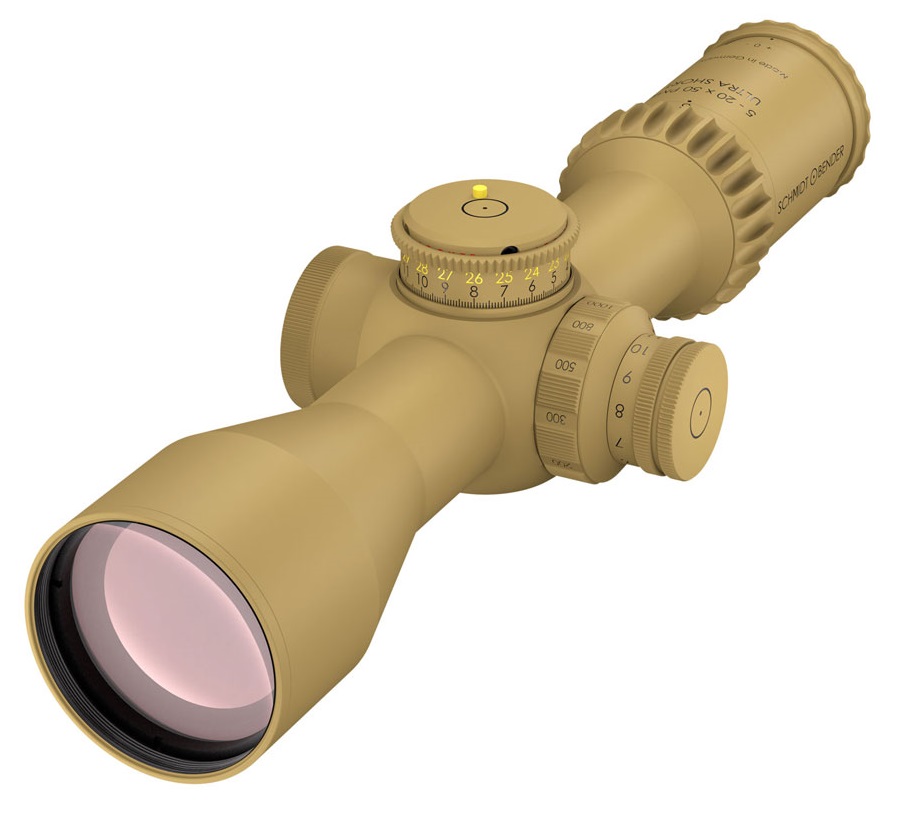

The 5-20x50 PM II Ultra Short is the world's shortest, fully functional sniper riflescope.
The riflescope won the “G210” tender of the special forces of the German Armed Forces KSK and KSM. It is also used by the Netherlands and by military special forces, including NATO partners and anti-terror units.
In addition to the mechanical robustness typical of Schmidt & Bender, it offers outstanding optical quality, high transmission and resolution. The latest version is equipped with the new ‘LPI’ (illuminated parallax integrated), which enables optimized mounting and easier operation for left-handed shooters. The new magnification ring also allows the new ‘Throw Lever’ to be mounted for faster magnification changes.
Due to its short design, it is suitable for use on semi-automatic rifles with short rails, but can also be used on bolt action rifles in .50 caliber. In the prone position, attachments can be easily operated without breaking up the shooting position.
| Weight (g) |
870 - 930 |
| Length (mm) |
299 |
| Tube diameter (mm) |
34 |
| |
| Magnification |
5-20x |
| Objective lens diameter (mm) |
50 |
| Field of view (m) |
7.8 - 2.0 |
| Exit pupil (mm) |
10.0 - 2.5 |
| Eye relief distance (mm) |
90 |
| Twilight factor |
15.8 - 31.6 |
| Transmission |
90 |
| Focal plane |
1. |
| |
| Diopter |
-3 to +2 |
| Parallax adjustment |
yes |
| Illumination |
yes |
| |
| Adjustment |
DT27 MTC LT / ST ZC CT |
| Adjustment Value/Click |
1 cm |
| Elevation (Turret) |
270 cm/100 m |
| Windage (Turret) |
±60 cm/100 m |
| |
| Adjustment |
DT35 MTC LT / ST ZC CT |
| Adjustment Value/Click |
1 cm |
| Elevation (Turret) |
350 cm/100 m |
| Elevation (Turret) |
±60 cm/100 m |
| |
| Waterproof (m) |
3 m (10 / 20 / 25 On request) |
| Temperature Range |
|
| Storage |
-55 to 71°C |
| Function |
-46 to 60°C |
| |
| Turret Types |
cw/ccw |
Product options:
Reticles:
Turret Rotation:
Turret Type:
