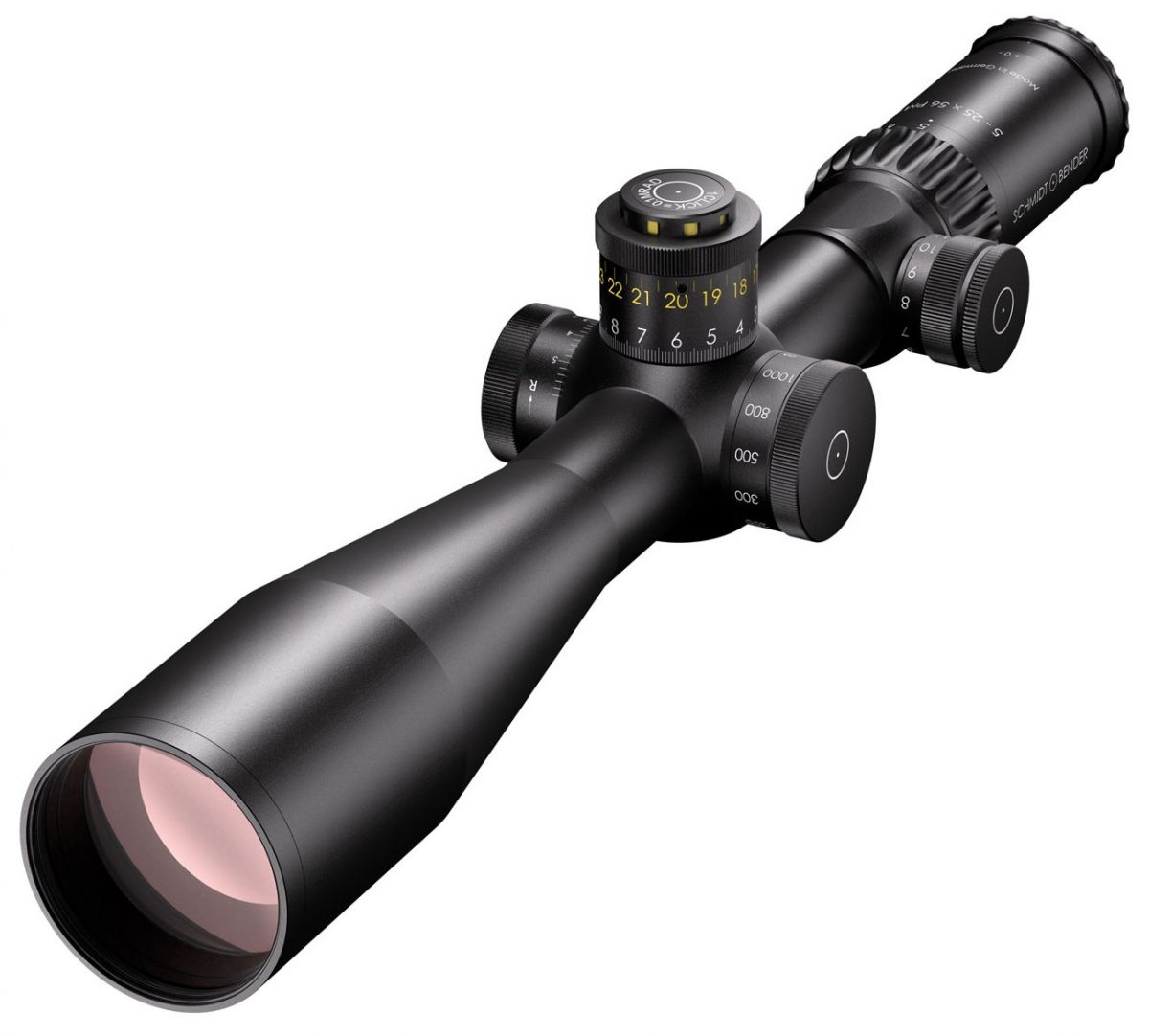

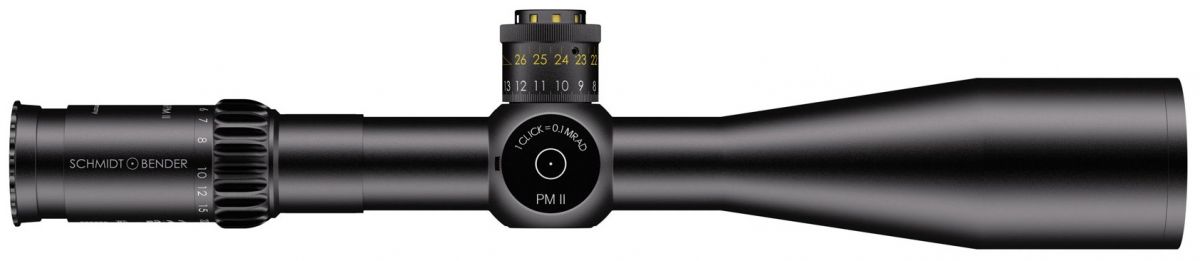

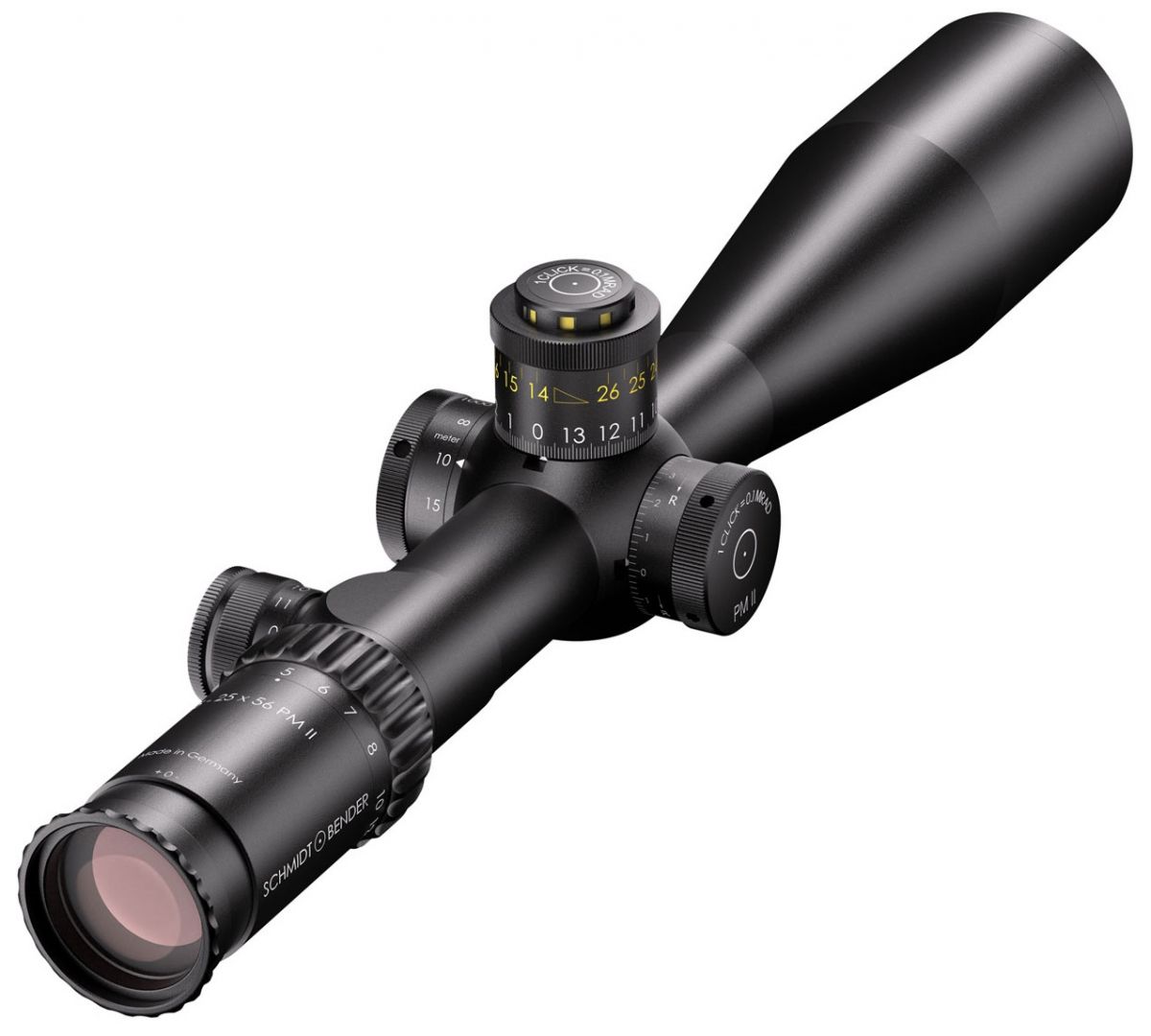

Unrivalled to this day – the 5-25x56 PM II is one of Schmidt & Bender's most popular riflescopes.
For more than 15 years, it has been an established part of the equipment of police, military and special units worldwide. In 2011, for example, it won the prestigious USSOCOM ‘Precision Sniper Rifle’ tender. Today, it continues to prevail against its imitators in tenders.
Optically, it has been the gold standard among 5-25x56 scopes for almost two decades now. The parallax can be precisely adjusted from 10 meter. The high-performance design of the 5-25x56 PM II is being continuously developed. The new magnification adjustment is made of high-quality aluminum and is compatible with the ‘Throw Lever’. The metal eyepiece end ring with internal thread is used for attaching accessories, offers easy-grip diopter adjustment and allows the high-quality Tenebraex flip covers to be fitted.
This riflescope allows snipers to use it from medium to extreme distances of several kilometers.
Double Turn (DT) elevation turret with visual revolution indicator and Sub-Zero Clicks (SZC)
This is one of Schmidt & Benders most popular and sought-after elevation turret due to its simple and rugged design. Marks and numbers are in cm and the number “1” is standing for 10 cm/100 m. It provides 6 Sub-Zero Clicks (SZC). Furthermore, it provides a visual revolution indicator and has two revolutions. The indicator changes color during the transition to the second revolution from black to yellow, which corresponds to the yellow digits on the turret. It is ideally capable of providing the adjustment travel needed for long range shots. All of this makes this turret design very popular among military/police units as well as competition shooters.
Weight (g) |
1065 - 1125 |
Length (mm) |
420 |
Tube diameter (mm) |
34 |
|
Magnification |
5-25x |
Objective lens diameter (mm) |
56 |
Field of view (m) |
5.3 - 1.5 |
Exit pupil (mm) |
11.0 - 2.3 |
Eye relief distance (mm) |
90 |
Twilight factor |
15.8 - 31.6 |
Transmission |
90 |
Focal plane |
1. |
|
Diopter |
-3 to+2 |
Parallax adjustment |
yes, 10 to ∞ |
Illumination |
yes, 11 settings |
|
Adjustment |
DT ST |
Adjustment Value/Click |
0.1 mrad | ¼ MOA |
Elevation (Turret) |
26 mrad | 65 MOA |
Windage (Turret) |
±6 mrad | ±16 MOA |
|
Waterproof (m) |
3 m (25 On request) |
Temperature Range |
|
Storage |
-55 to 71°C |
Function |
-46 to 60°C |
|
Turret Types |
cw/ccw |
Product options:
Reticles, 1st focal plane:
Turret Rotation:
