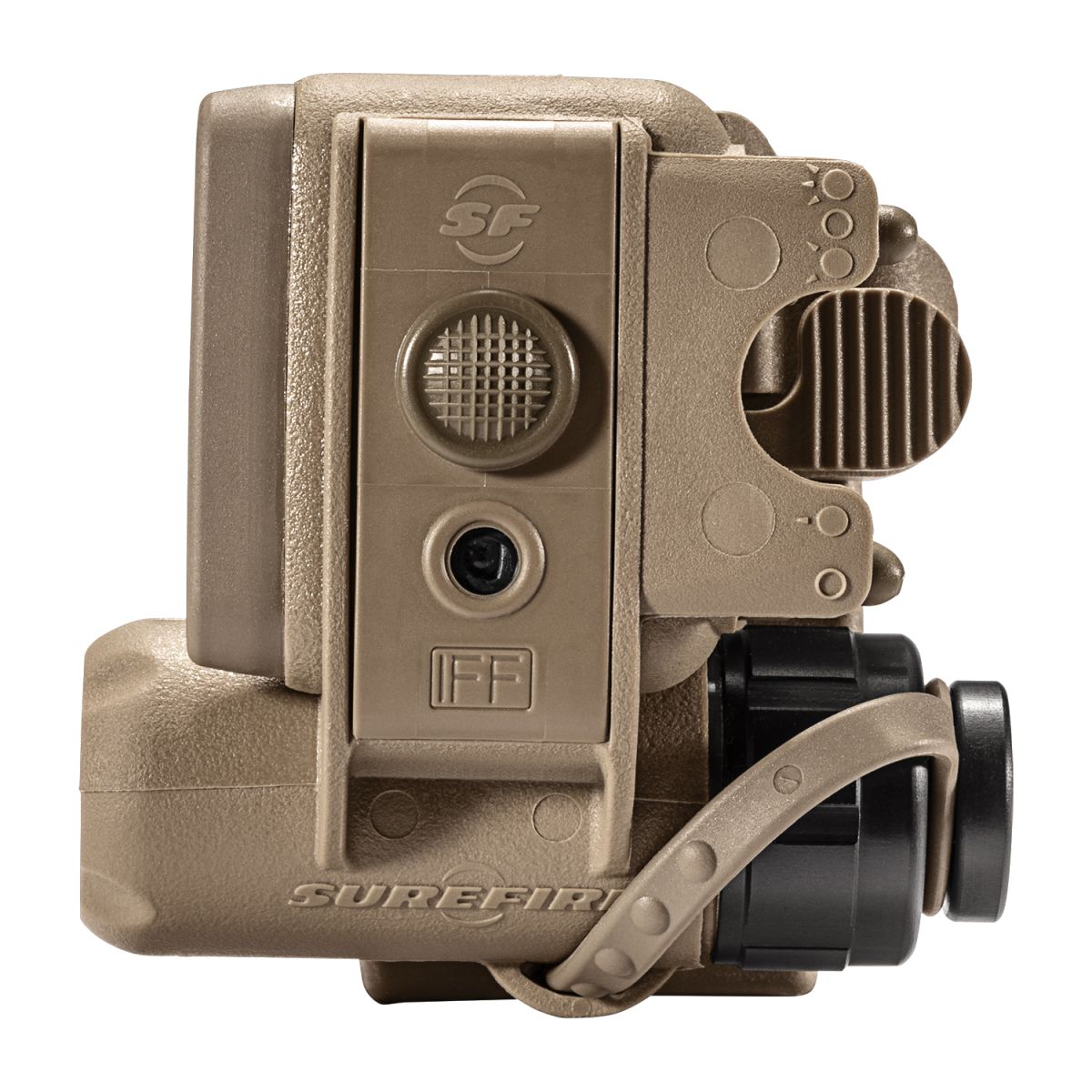

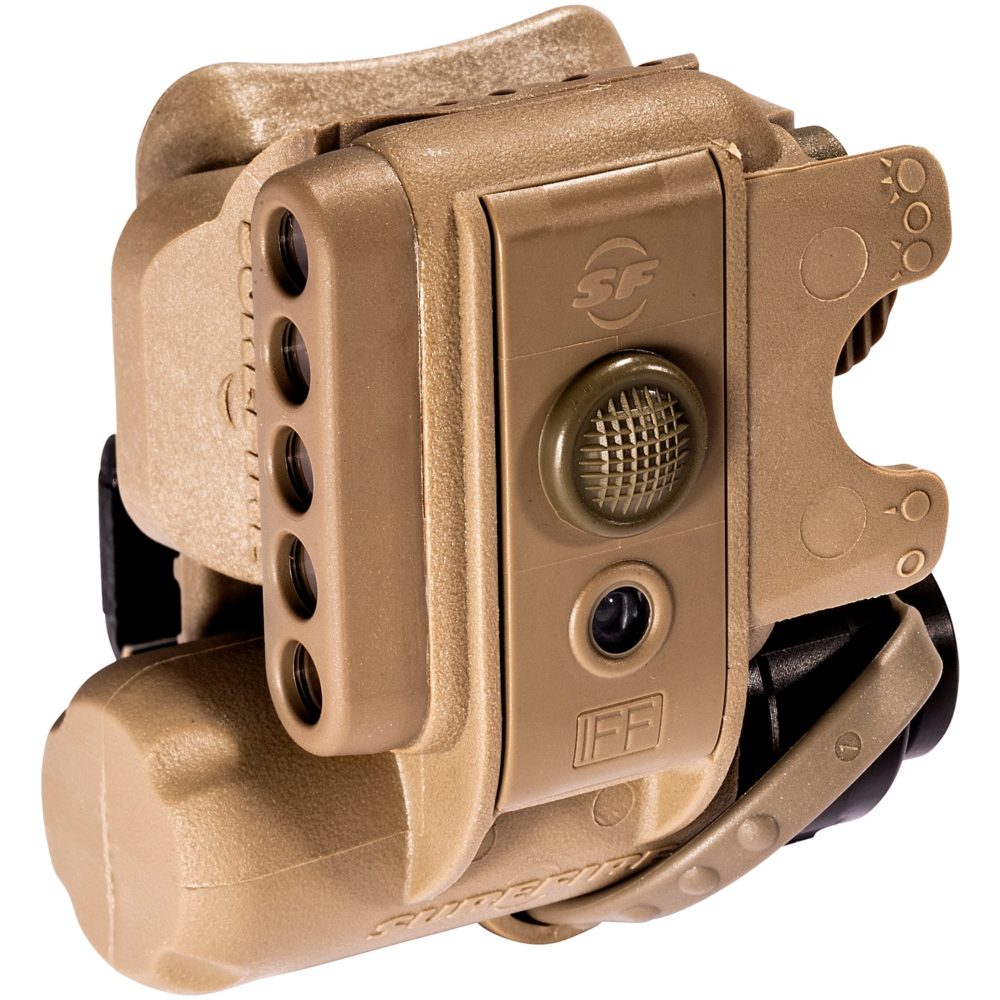

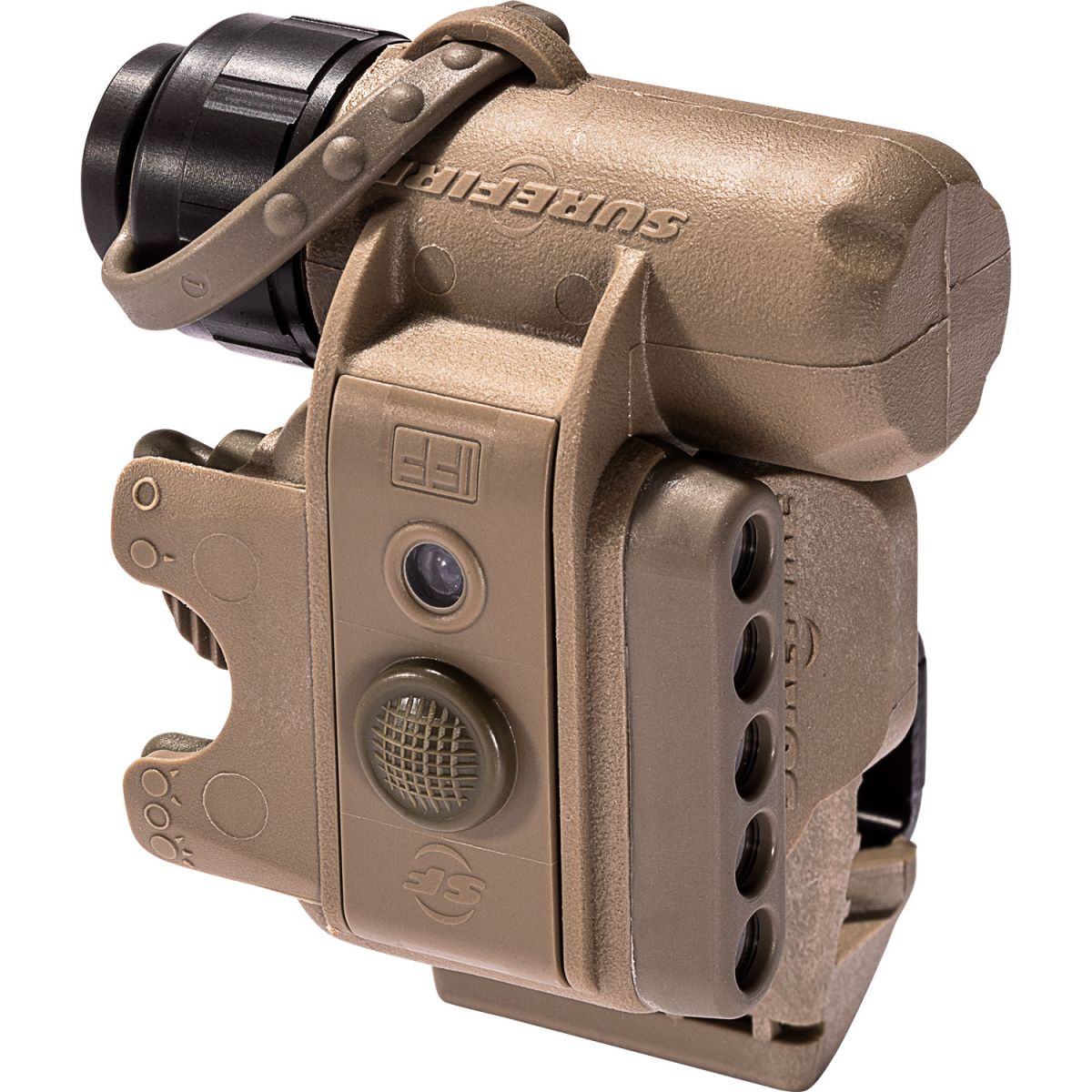

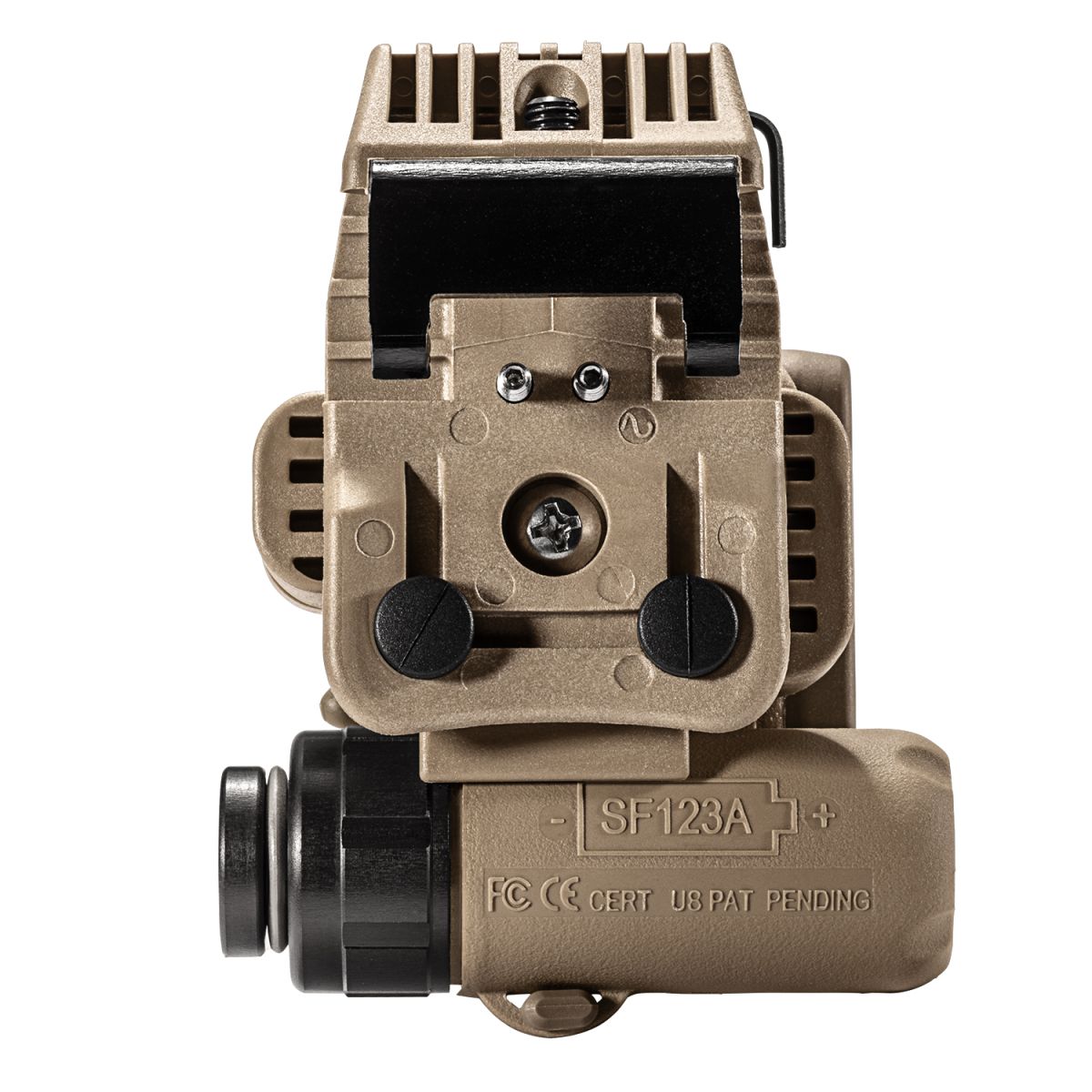

Go Head To Head With Darkness. The compact, variable-output HL1 HelmetLight features primary and secondary LEDs and one infrared Identify Friend or Foe (IFF) beacon. The primary LEDs are perfect for general-purpose close-work illumination. The colored secondary LEDs serve the same purpose but in a low-signature, dark-adapted-vision-friendly color. Its durable, watertight polymer body attaches to any Modular Integrated Communications Helmet (MICH) via an included ambidextrous mount with 20 preset positions for true 360-degree rotation. With the mount in place, the HelmetLight can be quickly and securely attached. Pressing a lever on the mount unlocks the light for quick removal. An optional Z71 carry clip mounts the light to any MOLLE or ALICE vest. The HL1 is a highly versatile illumination tool for military, law enforcement, and tactical use.
- The ideal compact HelmetLight, with SureFire performance and durability
- Fast, secure mounting and easy removal; can be used on MOLLE or ALICE vests
- Multiple task-specific LEDs, with included personal Identify Friend or Foe (IFF) beacon
Features
- White and night-vision-friendly colored LEDs for close-quarter activities
- Blinking infrared LED serves as IFF beacon (all models)
- Infrared LEDs (some models) for use with night vision devices
- Two toggle switches and a pressure switch for total control
- Constructed of durable glass-filled nylon polymer and neoprene
- Easily removable for servicing or transfer to other helmets (Z71 mount required)
- O-ring sealed, watertight body for dependable all-weather service
- Long runtime from a single 123A battery with 10-year shelf life
Key Attributes
HIGH OUTPUT: 19.2 lumens (white; yellow green) / 2.5 lumens (blue; red) / 30.5 milliWatts (IR)
HIGH RUNTIME: 48 hours (Low: white; yellow/green) / 96 hours (Low: red; blue) / 44 hours (Low: IR)
BATTERIES: One 123A lithium (incl.)
SWITCHING: Toggle and dome switch
Output
WHITE OUTPUT: High: 19.2 / Med: 5.0 / Low: 1.4 lumens
WHITE RUNTIME: High: 6 / Med: 28 / Low: 48 hours
YELLOW/GREEN OUTPUT: High: 19.2 / Med: 5.0 / Low: 1.4 lumens
YELLOW GREEN RUNTIME: High: 20 / Med: 48 / Low: 96 hours
RED OUTPUT: High: 2.5 / Med: 0.8 / Low: 0.3 lumens
RED RUNTIME: High: 20 / Med: 48 / Low: 96 hours
BLUE OUTPUT: High: 2.5 / Med: 0.8 / Low: 0.3 lumens
BLUE RUNTIME: High: 20 / Med: 48 / Low: 96 hours
IR OUTPUT: High: 30.5 / Med: 10 / Low: 2.0 milliWatts
IR RUNTIME: High: 6 / Med: 17 / Low: 44 hours
IR IFF STROBE OUTPUT: 1.7 milliWatts
IR IFF STROBE RUNTIME: 120 hours
Body
CONSTRUCTION: High-impact polymer
WEIGHT W/ BATTERIES: Light: 2.4 oz (68 g); Light + Mount: 4.0 oz (113 g)
DIMENSIONS: 2.2 in x 3.2 in x 2.4 in (5.6 cm x 8.1 cm x 6.1 cm)
NSN
HL1-A-BK: 6220-01-594-0581
HL1-A-TN: 6220-01-549-4174
HL1-B-TN: 6220-01-549-4184
HL1-C-TN: 6220-01-549-4203
HL1-D-TN: 6220-01-549-4218
